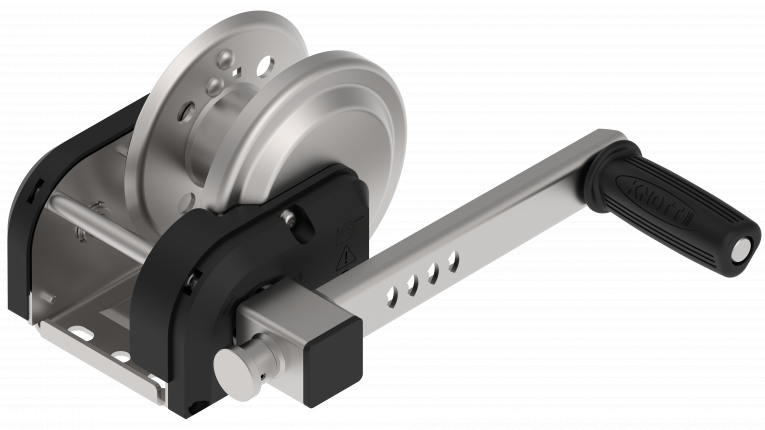

Cable winch 530 with automatic uncoiler
Cable winch 530 with automatic uncoiler
98,00 €
Price information
List price150,00 €
Internet price98,00 €
Price incl. VAT*
Article number: 422891.001
EAN: 4250269224556
EAN: 4250269224556
Immediately available
In stock: 99+
Quantity
Pay directly with Paypal:
*All prices are incl. tax and do not include shipping costs. The specified web price is only valid in this web shop. Our staff won't be able to grant the same conditions for standard orders.
Price level: 06.15.2025
Diameter (Ø)
5,0 mm
Article number
422891.001
Type
Cable winch 530
Crank length
220 mm
Manual force
250N
Rope capacity
15 m
Tractive power
530 kg
Gear ratio
5:1
EAN
4250269224556
Weight
5 kg
-
In stock: 99+Your price:29,70 €
Price incl. VAT
Art.Nr.: 425214.001
Steel wire rope with towing hook
Type: None
Tractive power: 530 kg
Dimension: Ø5mm x 15m
-
Art.Nr.: 425264.001
Winch strap with load hook
Type: None
Tractive power: 530 kg
Dimension: 48mm x 3m
-
In stock: 99+Your price:5,00 €
Price incl. VAT
Art.Nr.: 425314.001
Winch strap with load hook
Type: 530
-
In stock: 99+Your price:45,00 €
Price incl. VAT
Art.Nr.: 424937.002
Kurbel lose
Length: 220 mm
Designation: Kurbel lose
Hand-operated cable winch for trailers with detachable crank and automatic unwinding system
For safely and easily pulling cars, boats, etc. onto a trailer for transportation. The load pressure brake ensures that the load is still held when the crank is released in any position.
To make it easier to attach the hook to the vehicle, the cable winch has an integrated automatic unwinding system. This is activated after the crank handle has been turned anticlockwise at least a quarter of a turn. The hand crank must be removed during unwinding. As a result, there is no risk of injury from a rotating crank handle and the load pressure brake remains deactivated. As soon as the load is pulled with the load attached, the load pressure brake is activated again.
These are purely towing winches. They are not suitable for lifting. Observe the operating instructions!
Standard delivery without rope and strap.
Technology: - Load pressure brake
- Automatic unwinding system
- Removable hand crank
Pulling: Turn the crank handle clockwise.
Pulling: Turn the crank handle clockwise.
Hold: Release the hand crank in any position. The crank handle must not be removed.
Unwind: Turn the hand crank counterclockwise.
Automatic unwinding: Turn the crank handle at least 1/4 turn anticlockwise. Remove the crank handle. Pull the hook.
