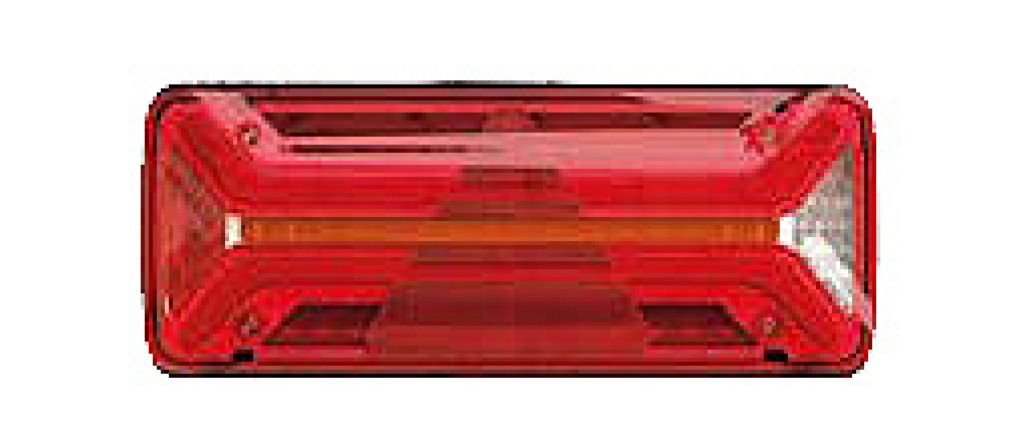

Aspöck Ecoled 2 LED

Side: right

4-function light

Connection:

7-pin + 4 x 2-pin ASS2

Indicator light: yes
Brake light: yes
Tail light: yes
Reversing light: yes

-> Dimensions: 150 x 80 x 23 mm

-> LED combination rearlight with interchangeable lens

-> Replacement lens can be used on both sides

-> Reduction in the variety of spare parts: the combination rearlight can be adapted to the mounting position by simply rotating the lens (LH / RH)

-> Innovative glowing body technology as parking light

-> Increased visibility thanks to the large illuminated area of the parking and brake light functions

-> Dynamic direction indicator

-> ISO pulse 13207-1 as standard (at 24 V)

-> Practical click system makes mounting the lens easier

-> Chemical and scratch-resistant lens

-> SMCG (Sidemarker Control Gear) included (for version with 2-pole outlets) in accordance with ECE 48, Rev. 6

->Intelligent partial cut-off of the brake light when the rear fog light is activated

->LED clearance light is mounted with a mounting bracket that has a predetermined breaking point

-> Optional with 4 x 2-pin connections on the rear of the light (distributor function)
