Loading rails
Filter products
-

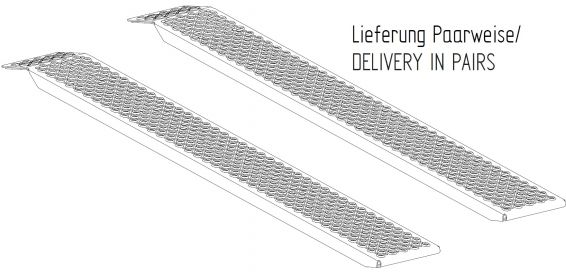

Art.Nr.: 405921.001
Loading rail
Type: gerade
Length unfolded: 1500 mm
Outer width: 200 mm
Ramp height: 40 mm
Load with axial distance >1200mm per pair: 400 kg
Driveway height min/max: 388/430
-
Art.Nr.: 405922.001
Loading rail
Type: gerade
Length unfolded: 1500 mm
Outer width: 260 mm
Ramp height: 65 mm
Load with axial distance >1200mm per pair: 1000 kg
Driveway height min/max: 388/430
-
Art.Nr.: 405921.002
Loading rail
Type: gerade
Length unfolded: 2000 mm
Outer width: 200 mm
Ramp height: 55 mm
Load with axial distance >1200mm per pair: 400 kg
Driveway height min/max: 517/575
-

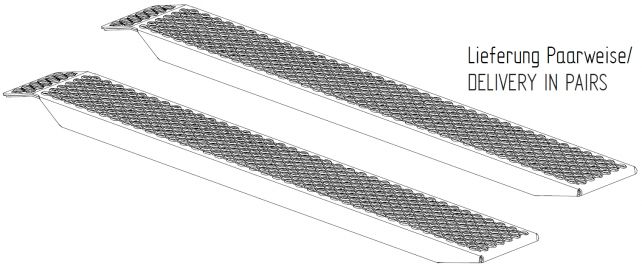

Art.Nr.: 405922.002
Loading rail
Type: gerade
Length unfolded: 2000 mm
Outer width: 260 mm
Ramp height: 65 mm
Load with axial distance >1200mm per pair: 1000 kg
Driveway height min/max: 517/575
-

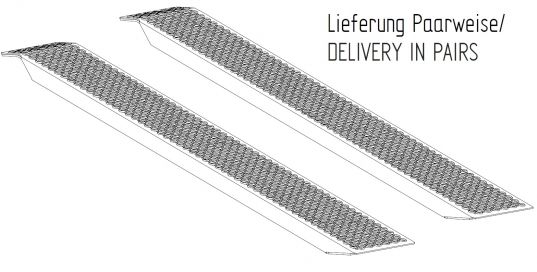

Art.Nr.: 408968.001
Loading rail
Type: gerade verstärkt
Length unfolded: 2000 mm
Outer width: 260 mm
Ramp height: 65 mm
Load with axial distance >1200mm per pair: 2000 kg
Driveway height min/max: 510/555
-
Art.Nr.: 408968.002
Loading rail
Type: gerade verstärkt
Length unfolded: 2000 mm
Outer width: 260 mm
Ramp height: 65 mm
Load with axial distance >1200mm per pair: 4000 kg
Driveway height min/max: 510/555
-
Art.Nr.: 405922.003
Loading rail
Type: gerade
Length unfolded: 2500 mm
Outer width: 260 mm
Ramp height: 80 mm
Load with axial distance >1200mm per pair: 1000 kg
Driveway height min/max: 647/718
-
Art.Nr.: 408969.001
Loading rail
Type: gerade verstärkt
Length unfolded: 2500 mm
Outer width: 260 mm
Ramp height: 80 mm
Load with axial distance >1200mm per pair: 2000 kg
Driveway height min/max: 644/700
-

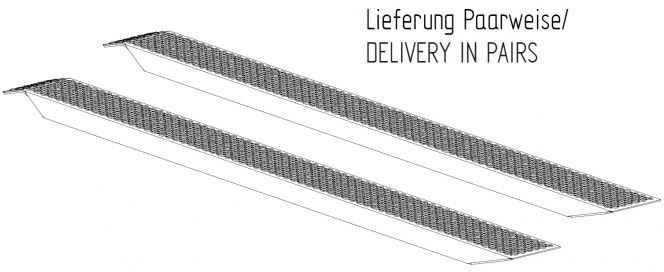

Art.Nr.: 408969.002
Loading rail
Type: gerade verstärkt
Length unfolded: 2500 mm
Outer width: 260 mm
Ramp height: 80 mm
Load with axial distance >1200mm per pair: 4000 kg
Driveway height min/max: 644/700
